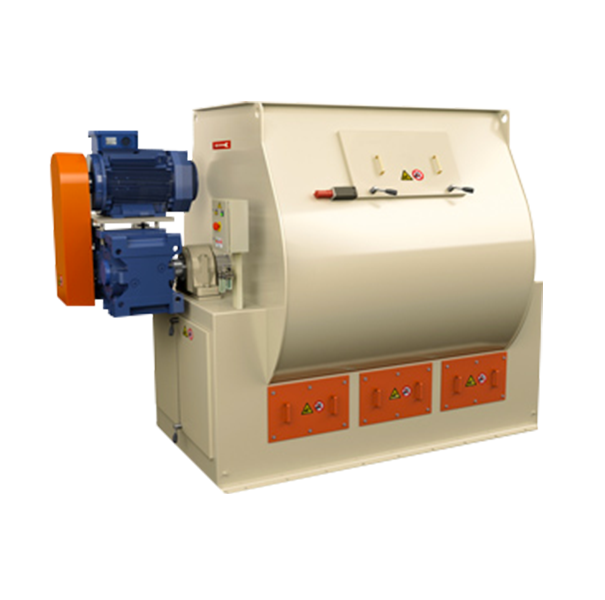

PADDLES MIXER
PADDLES MIXER

A paddle mixer is a machine that is used for mixing mineral and premix products with dosed and crushed grains homogeneously. It ensures faster mixing, but requires more power and the load needs to be central.
In La Meccanica's paddle mixer accuracy is guaranteed mixtures homogeneous with a variation coefficient of <5% and homogeneity is achieved after a short a time (2-3 min). It is possible to add liquids. Filling and discharge times are very short.

Show more

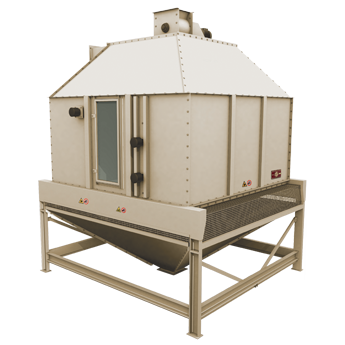

COUNTERFLOW COOLER
COUNTERFLOW COOLER

The counterflow cooler represents the solution with the best cost/performance ratio of pellet cooling. With rotary distributor, the pellets can be cooled evenly in the bin room. Cooling air reverse the pellets and the pellet is cooled from the bottom to top gradually, thus the cooling time is increased.
La Meccanica's counterflow pellet cooler is characterized for: grid discharger driven by 1.1 kW-21 rpm gear motor with brake and limit switch, discharging speed adjustable through hand wheel, rotary valve 350 in stainless steel, hood and bin walls with mild steel reinforcements, hard glass inspection door with door switch, stationary and adjustable product distributor, two product rotating sensors, pneumatic discharger closing when power fails.



Animal feed Wood & Biomass

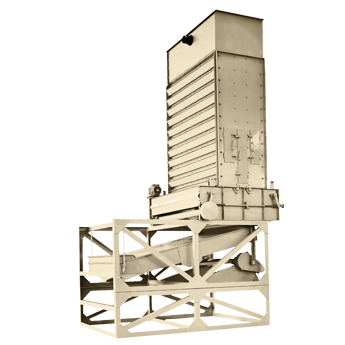

VERTICAL COOLING GROUP
VERTICAL COOLING GROUP

La Meccanica's vertical cooling group is composed by a vertical cooler and an oscillating sifter. It takes a minimal amount of floor space, but still with very good cooling efficiency.

Show more

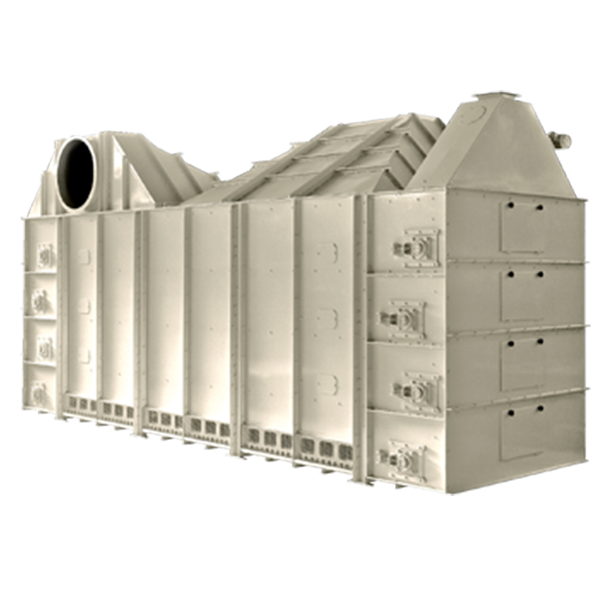

HORIZONTAL COOLER
HORIZONTAL COOLER

Every cooler performs two functions: cools and dries the pellet. The horizontal cooler is the alternative solution to the other cooling systems when vertical space is limited or when the product is presented in finely granular form.
La Meccanica's horizontal pellet cooler, with its moving bed, mechanically move and discharge the pellets. This provides the positive flow action which is needed when processing pellets.



Show more
